A1500
Programmable AC Power Source
AC 1.5KVA
Description
Accurate, Fast
Response and Easy to Measure

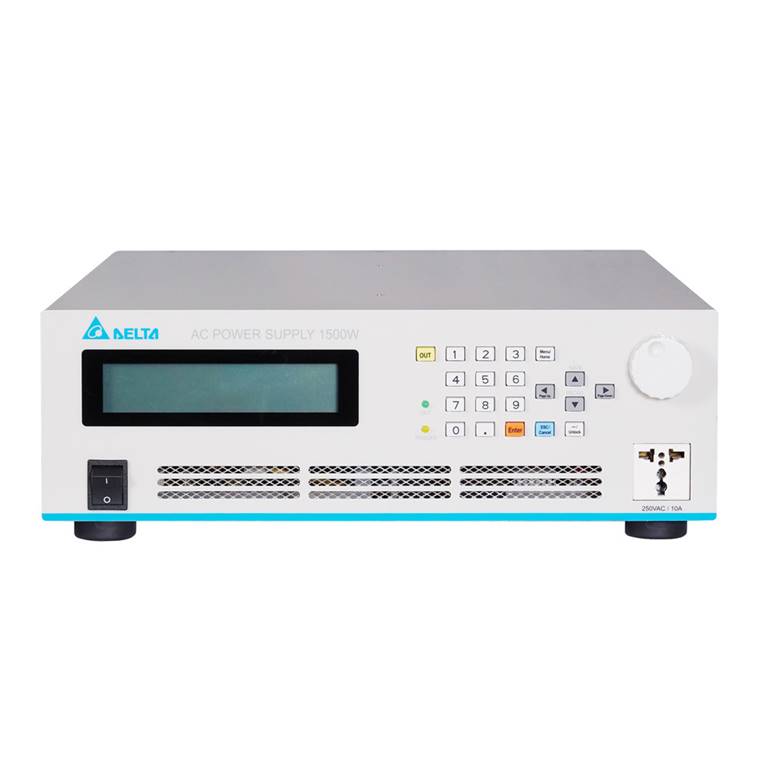

The A1500 programmable AC power
source is equipped with advanced DSP technology for accurate electronic
parameters such as Vrms, Irms,
active power, VA, PF, and more. It also has 30 sets of mainstream waveform
synchronization built in. Maximum 1500VA output power and programmable 30–1KHz output
frequency. Supports remote control via RS232 or GPIB
communication. From design and quality testing to manufacturing testing, the
A1500 can fulfill your needs.
Complete Waveform Simulation
Delta A1500's AC power supply has 30
sets of mainstream waveforms and two sets of customized waveforms to fulfill
the needs of various applications such as specific on-board charging,
communication equipment, switching power, and more.

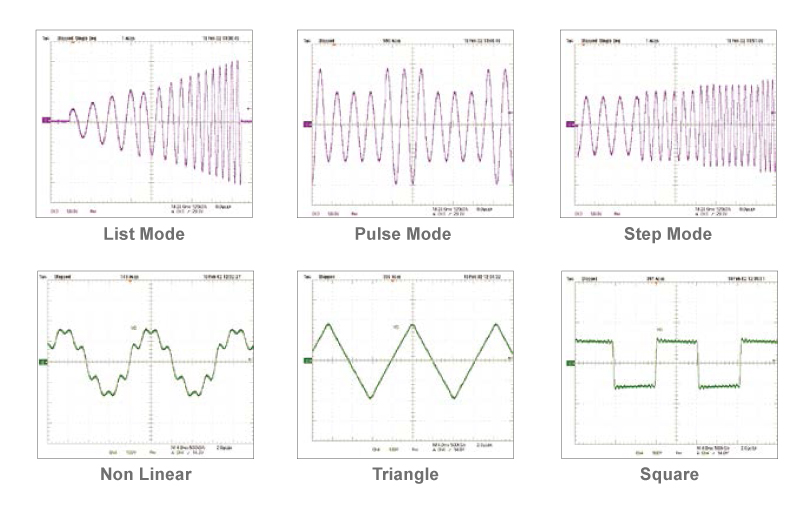

Supports programmable LIST, PULSE,
and STEP via advanced DSP technology for easy simulation of power disturbance
testing.
Features
- Programmable control voltage and
current limits
- High-peak output current for
accurate inrush current testing
- Supports AC and DC outputs
- Advanced DSP technology provides
accurate electronic parameters
- 30 sets of mainstream waveform
synchronization built in for simulating various power grids
- Comprehensive circuit and fan
protection

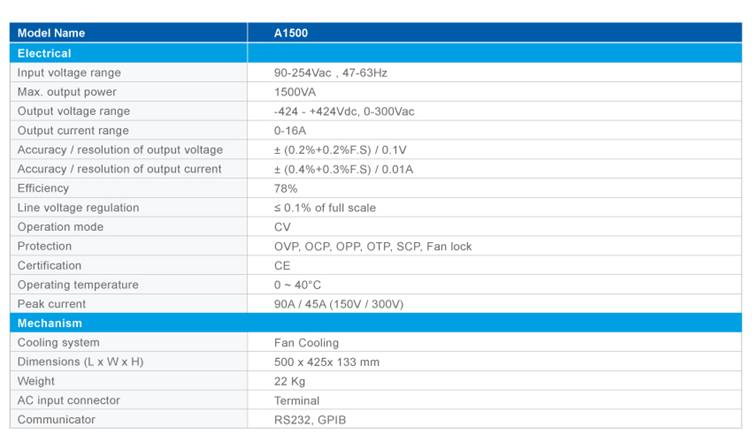

Specifications
